Determining Surface Orientations of Transparent Objects
Based on Polarization Degrees in Visible and Infrared Wavelength
Daisuke Miyazaki Megumi Saito Yoichi Sato Katsushi Ikeuchi
We present a new method for obtaining surface orientations of transparent surfaces through analysis of the degree of polarization in surface reflection and emission in visible and far-infrared wavelength, respectively. This parameter, the polarization degree of reflected light at the visible wavelengths, is used for determining the surface orientation at a surface point. The polarization degree at visible wavelengths provides two possible solutions, and the proposed method uses the polarization degree at far-infrared wavelengths to resolve this ambiguity.
Publications
1. D. Miyazaki, M. Saito, Y. Sato and K. Ikeuchi, gDetermining surface orientations of transparent objects based on polarization degrees in visible and infrared wavelengths,h Journal of Optical Society of America A, Vol.19, No.4, pp.687-694, Apr., 2002.2. M. Saito, Y. Sato and K. Ikeuchi, gShape Modeling of Transparent Objects by Use of Polarization,h IPSJ Transactions on Computer Vision and Image Media, Vol.41, No.SIG10, pp.12-18, Dec., 2000 (in Japanese).
3. M. Saito, Y. Sato and K. Ikeuchi, gPolarization Analysis of Infrared Emission for Shape Measurement of Transparent Objects,h in Proc. of Meeting on Image Recognition and Understanding 2000, Vol.I, pp.95-100, Jul., 2000 (in Japanese).

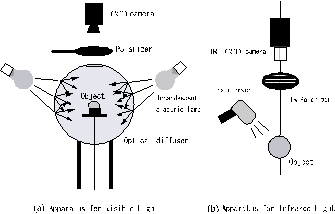

Apparatus
Results
